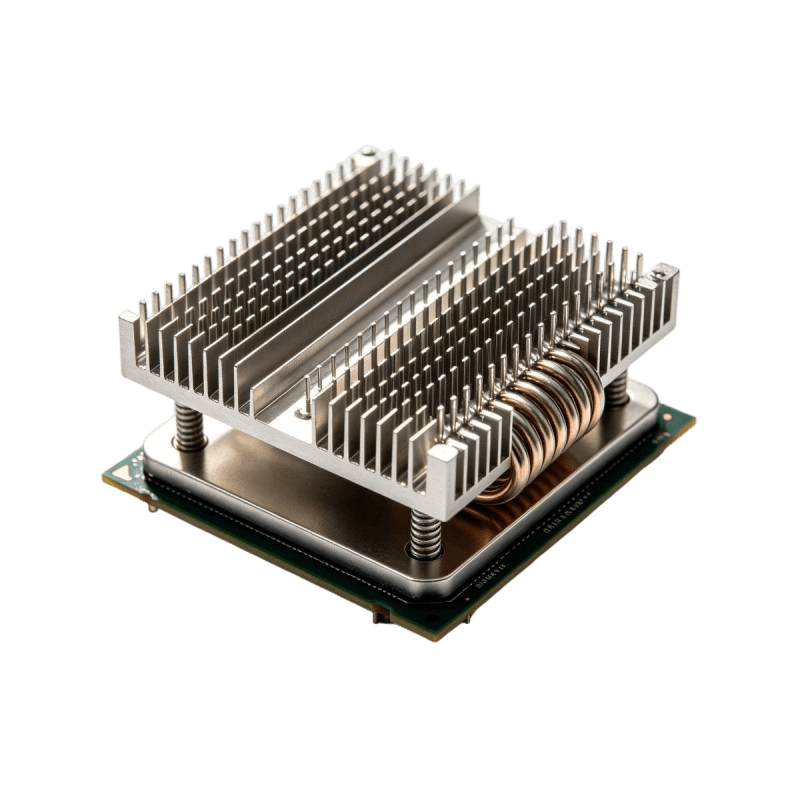

CPU Heat Sink
This CPU heat sink is a standard passive thermal control component developed for commercial and consumer desktop PCs. It is designed to resolve conventional CPU heat accumulation during daily and medium-load operation, stabilizing internal equipment temperature and maintaining regular operating status of desktop computer hardware under daily working and entertainment environments. The product adopts universal structural design to match mainstream desktop motherboard assembly standards for basic and reliable thermal control support.
CORE FEATURES
Adopts universal structural design to adapt to most mainstream desktop installation environments.
Delivers stable and consistent thermal conduction performance for daily and medium-load operating conditions.
Features compact overall dimension to reserve internal space inside computer chassis.
Utilizes standard industrial materials to guarantee long-term structural stability and service life.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|
Dimension |
Standard desktop specification |
|
Weight |
Conventional structural weight |
|
Material |
Aluminum alloy / copper composite optional |
|
Supported TDP |
Conventional desktop CPU power range |
|
Noise Level |
No extra operating noise |
|
Installation Interface |
Universal mainstream desktop interface |
COMPATIBILITY
Compatible with mainstream Intel and AMD desktop CPU series and standard ATX/MATX chassis assembly structures.
APPLICATION SCENARIOS
Office desktop computers, household daily-use desktops, conventional commercial fixed desktop equipment.
CUSTOMIZATION CAPACITY
CPU Heat Sink Supplier
Jadecooling Tech is a CPU Heat Sink Supplier providing custom and OEM thermal management components for desktop computers, servers, industrial computers, embedded systems, workstations and other electronic hardware.
A CPU heat sink must do more than simply provide a large metal surface. Its performance depends on how efficiently heat moves from the processor into the base, through the fin structure and into the surrounding airflow. For OEM and hardware manufacturers, the cooling component must also fit within strict mechanical limits, align with motherboard layouts and remain practical for repeatable volume production.
CPU Heat Sinks for Different Computing Platforms
Different computing systems require different cooling architectures.
A desktop processor may have more space available for a tower-style cooler, while an embedded system or server may require a low-profile structure with highly controlled airflow.
Jadecooling Tech develops CPU heat sinks around the real operating environment rather than relying on a single standard structure.
| Application | Typical Cooling Requirement | Main Design Focus |
|---|---|---|
| Desktop PC | Moderate to high CPU heat load | Fin area, fan compatibility, noise and appearance |
| Gaming PC | High sustained processor load | Heat pipes, airflow, visual design |
| Server | High heat density and continuous operation | Low thermal resistance, airflow and compact dimensions |
| Industrial Computer | Reliability and limited enclosure space | Mechanical strength, passive or forced cooling |
| Embedded System | Compact thermal solution | Low profile, mounting and component clearance |
| Workstation | High CPU load under sustained workloads | Thermal capacity and stable performance |
This platform-specific approach helps OEM customers avoid overdesigning or underdesigning the cooling component.
Custom CPU Heat Sink Design
Jadecooling Tech supports custom CPU heat sink development when standard off-the-shelf products cannot meet the project's dimensional, thermal or mounting requirements.
A custom project can begin from:
-
CPU specifications
-
Motherboard drawings
-
2D or 3D files
-
Existing heat sink samples
-
Available installation envelope
-
Target thermal performance
-
Airflow information
-
Mounting requirements
-
Preliminary design concepts
Our engineers can evaluate the most suitable combination of material, base structure, fins, heat pipes and mounting features according to the complete system.
CPU Heat Sink Thermal Performance
The performance of a CPU heat sink is influenced by multiple parameters.
CPU Heat Load
The expected processor power provides the starting point for selecting the cooling architecture.
Base Contact
The CPU contact area must transfer heat efficiently into the heat sink structure.
Fin Surface Area
Larger effective surface area can improve heat dissipation when sufficient airflow is available.
Fin Spacing
If fins are too close together, airflow resistance may increase. If they are too far apart, available cooling surface may be underutilized.
Heat Pipe Configuration
For high-load designs, heat pipe quantity and routing influence how evenly heat spreads through the fin stack.
Airflow
The heat sink should be matched with the airflow direction and volume available inside the enclosure.
Mounting Pressure
Stable contact between the CPU and heat sink helps maintain predictable thermal performance.
Mechanical Compatibility Is Critical
For OEM projects, a CPU heat sink must fit precisely within the surrounding hardware.
The design should account for:
-
CPU socket location
-
Mounting hole positions
-
RAM module clearance
-
VRM component height
-
PCIe clearance
-
Chassis height
-
Fan position
-
Cable routing
-
Adjacent heat sources
A thermally strong heat sink can still fail as a product if it interferes with the motherboard or cannot be installed consistently.
Jadecooling Tech therefore considers both thermal and mechanical requirements during development.
CPU Heat Sink Applications
Jadecooling Tech CPU heat sinks can be used in a wide range of computing and electronic equipment, including:
-
Desktop computers
-
Gaming PCs
-
Rack servers
-
Industrial PCs
-
Embedded computers
-
Workstations
-
Edge computing devices
-
Telecom equipment
-
Control systems
-
High-performance electronics
Each application has different thermal and mechanical priorities, so the heat sink should be selected or customized accordingly.
Source Your CPU Heat Sinks From Jadecooling Tech
A reliable CPU heat sink must balance heat transfer, airflow, mechanical compatibility, manufacturing cost and long-term production consistency.
Jadecooling Tech supports PC, server, industrial computer and electronics manufacturers with custom CPU cooling components developed around their actual hardware platform.
Whether you require a compact aluminum heat sink, a copper heat spreader, a heat-pipe cooling assembly or a completely customized CPU thermal module, Jadecooling Tech can support the project from engineering review through production.
Send us your CPU model, motherboard drawing, available space, thermal requirement and expected quantity. Jadecooling Tech can evaluate a suitable CPU heat sink structure for your project.
Supports non-standard dimensional adjustment for special chassis space.
Supports replacement of material specifications and optimization of thermal conductivity structure.
Supports fine modification of external assembly size.
